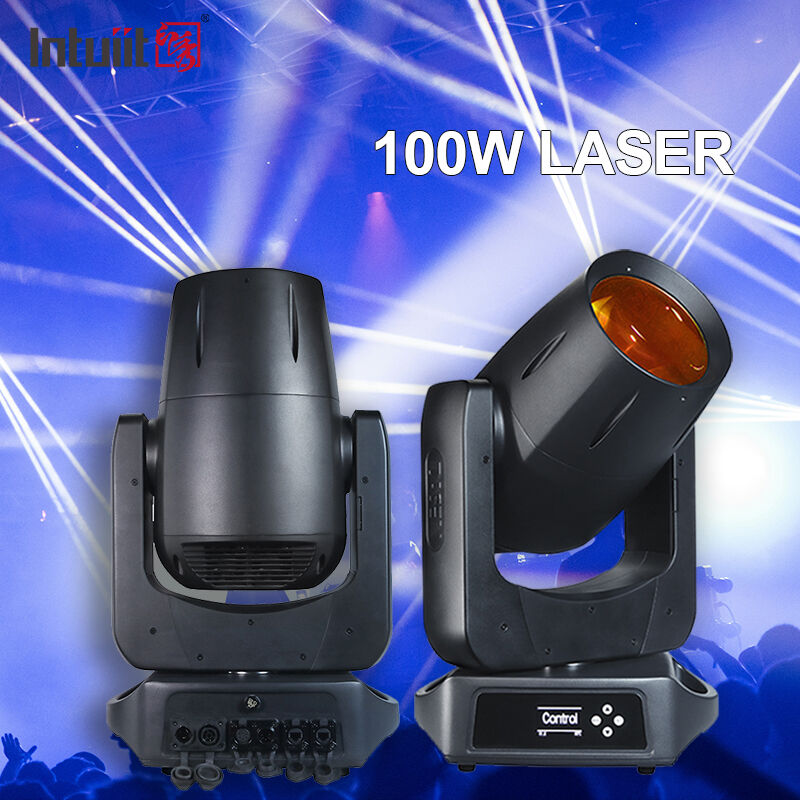

100W Laser Light Moving Head Beam Light Waterproof Moving Head for Outdoor Scenic Area
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Intuiit |
| Chứng nhận: | CE&RoHS |
| Số mô hình: | XY-052P |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | MOQ 20pcs |
|---|---|
| chi tiết đóng gói: | Hộp bên trong + Thùng Carton/Hộp máy bay |
| Thời gian giao hàng: | 25-35 ngày để đặt hàng đại chúng |
| Điều khoản thanh toán: | T/T trước (tiền gửi 30%, thanh toán số dư 70% trước khi giao hàng) |
| Khả năng cung cấp: | 5000 CÁI / tháng |
|
Thông tin chi tiết |
|||
| Nguồn: | Laser 100W | CCT: | 10000K |
|---|---|---|---|
| CRI: | 75 | Góc chùm tia: | 0,8 ° |
| Bánh xe màu: | 12+1open | Iris: | CMY |
| Bánh xe xoay vòng: | 10+1 mở | Đã sửa lỗi bánh xe gobo: | 23+1open |
| Nghiêm trang: | 18/36 Facet Prism + 6 Prism tuyến tính | Lớp IP: | IP66 |
Mô tả sản phẩm
Dasen Imager B100 Moving Head: Precision Engineering for Professional Lighting
Body:
Presenting the Dasen Imager B100, a compact wash/beam moving head engineered to deliver high-output performance without compromising on versatility. Designed for rental companies and installation professionals who demand reliability, it combines cutting-edge optical technology with rugged durability.
Key Technical Specifications:
-
Advanced Color Mixing: Features a patented 8-color wheel complemented by a full CMY mixing system, allowing for seamless transitions and an infinite spectrum of precise hues.
-
Versatile Pattern Projection: Equipped with 23 fixed and 10 rotating, indexable gobos (plus 1 open) to provide dynamic texture and limitless pattern combinations.
-
Spatial Effects: An ultra-bright rotating prism adds depth and complexity, creating immersive, multi-layered aerial effects.
-
All-Weather Construction: Certified with an IP66 rating, the housing ensures absolute protection against water jets and dust, guaranteeing consistent operation in any European climate—from outdoor festivals to humid coastal venues.
Ideal for large-scale concerts, theatrical productions, and high-end architectural installations, the Imager B100 delivers studio-grade precision in a rugged, tour-ready package.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

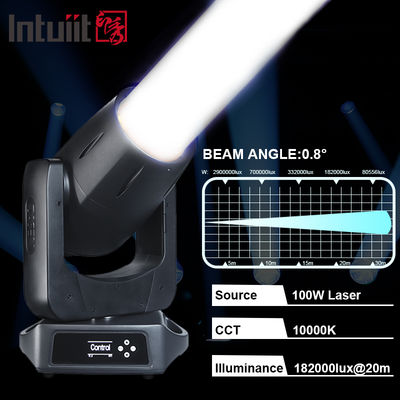

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |
| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |
| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
